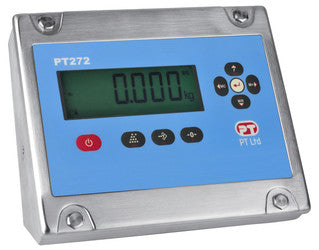

Weighing Indicator - PT272

Weighing Indicator - PT272

$1,282.38 AUD
$1,282.38 AUD
Sale Sold out
Shipping calculated at checkout.
View full details
The PT272 is an affordable, high quality general purpose weighing indicator for industry in a durable IP66 stainless steel housing. Ideal for platform, truck and hopper scales among other applications and is available with surge protection and Alibi memory.

The PT272 is approved by Weights & Measures Authorities for use in Accuracy Class III applications with 6000 and 2x6000 intervals in accordance with OIML R76.

Weighing, Check weighing and Dynamic weighing for animals are standard as is printing which is selectable from 4 languages. It has 100 product memories for check weighing.

Under, OK, Over Status bars and programmable buzzer and screen colour for operator prompting are available for check weighing. The PT272 can also be configured as a remote display for Azure instruments.

Easy and practical operation via navigation keys with two programmable function keys and 25mm large digits and wide viewing angle, multi-colour backlit LCD display.

The PT272 is powered by AC power with integral mains cable and internal re-chargeable Li-ion long life battery. Powering from 12VDC is possible.

FUNCTIONS
  • Basic Weighing
  • High/low/OK check Weighing with buzzer and display colour change
  • Clock &  calendar &   part memory locations
  • lb/kg, g/oz switching
  • Live animal weight
  • Totalising for weighing
  • Remote display with Zero and Tare


FEATURES
  • 30,000 displayed divisions
  • OIML R76 Approved
  • Stainless steel IP66 housing
  • Mains powered with 12V DC option
  • 25mm wide angle LCD display with back light
  • 2 programmable function keys and navigation keys provide easy operation
  • Linearity correction
  • Gravity Adjustment
  • Li-Ion long life rechargeable battery
  • Auto Power off
  • Panel mount, desk stand, pole/wall bracket mounting included
  • 2x RS-232C data port standard
  • Ticket printing with Date, Time, Ticket no, Gross, Tare & Net Weight
  • 100 product memories for check weighing
  • Smart dynamic weighing algorithm for animal weighing
  • CE approved

Pdf_icon PT272 Datasheet
Product Brochure and Specifications
Pdf_icon PT272 OIML Certificate
R76_2006-DK3-17.03 - PT - PT252_PT253_PT272

SPECIFICATIONS
Power Supply:  2000mAh Li-ion Battery
Charging:  Integral cable, 100-240VAC (100-125VAC with USA plug) and 12VDC (10.5-14.6) configurable
Battery life:  Up to 36hrs for 1 load cell, 24hrs for 4x350Ω
Load Cell Excitation:  5V, up to 4x 350Ω or 8x 700Ω load cells, 4 or 6 wire
Input range:  0mV to +18mV. Minimum 0.1 μV/division
Zero Adjustment Range:  -18mV to +18mV
Scale Range:  Up to 300000kg or 600000lb
Units:  g, kg, oz, lb
Resolution:  Max. Displayed 30000, internal 16000000, 24 bit Delta Sigma ADC
Display:  112x40mm extra wide angle backlit LCD with 25mm digit height and 3 back light colours
Annunciators:  Gross, net, motion, centre of zero, units
Keypad:  9 key (on/off, user assignable Function, Tare/Clear, Zero, navigation and memory)
Operating Environment:  -15ºC to +55ºC; max. 85% RH, non-condensing. IP66 with front panel sealing.
Enclosure and Dimensions:  Stainless steel, IP66 protected. 225x190x95mm
Calibration:  Calibration can be performed with or without load cell non-linearity correction.
Digital Filter:  Adaptive digital filter adjustable in 4 steps for standard weighing,
Adaptive digital filter adjustable in 4 steps for dynamic (animal) weighing.
Weighing Functions:  Taring, zeroing, auto zero tracking, motion detection, auto zero at power up, increased resolution, unit change, temporary gross weight indication, dynamic(animal) weighing.
Totalising:  Accumulation of Weighing for totalising.
Check Weighing (classifying):  Under, OK, Over status bars on display and programmable buzzer, Memory for 100 products. Operator prompting with Under, OK, Over status bars on display and programmable internal buzzer
Dynamic (Animal Weighing):  Supported by smart dynamic weighing algorithms
RS-232:  1200 to 115200 baud, 8N1. 2nd RS232 is transmit only.
Data Output:  Demand, Continuous and Fast Continuous
Print ticket format:  Programmable for different weighing modes. Format may include Date, Time, Ticket No, Gross, Tare and Net weights. Label (print ticket) count number can be Preset.
Date Format:  Programmable as dd.mm.yyyy, mm.dd.yyyy or yyyy.mm.dd
Print languages:  English, Turkish, German, French, Spanish
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
