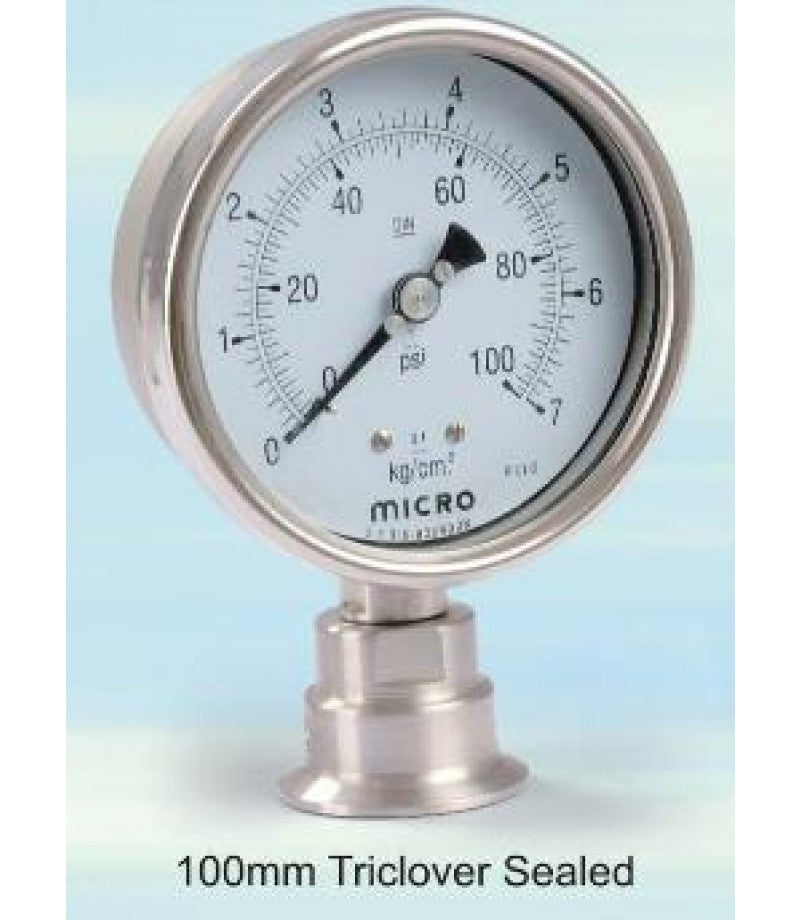

Diaphragm Sealed Pressure Gauge

Diaphragm Sealed Pressure Gauge Zoom

Diaphragm Sealed Pressure Gauge

SKU: DiaphragmSPG
A$399.00
Downaload PDF Datasheet
Product Description

    Details

    Application:



    Diaphragm sealed pressure gauge are suitable for the corrosive, contaminated, highly viscous, crystallizing, slurry or hot pressure media.


    Dial Size:
    63 mm, 100 mm, 150 mm and 250 mm
    Accuracy: 63 mm: + / -1.6% of Full Scale, 100 mm, 150 mm, 250 mm: + / -1.0% of Full Scale
    Range Available: -100 kPa to 40000 kPa
    Unit Available: kPa, PSI, Bar, mmH2O, cmH2O, InchWater, Inch Hg, mm Hg, mH2O
    Operating Temperature: Ambient: -4°F to 140°F (-20°C to +60°C)      Media: max. 140°F (+60°C)
    Service Fluid: Compatible Gases and Liquids
    Housing: Stainless Steel Case SS 304
    Glass: Safety Glass
    Liquid Filled: Glycerin
    Bourdon Tube: Stainless Steel SS 316
    Movement: Stainless Steel SS 304
    Connection: 1/4" BSPT/ 3/8" BSPT / 1/2" BSPT
    Dial: Aluminum, White Background, Black or Black and Red Lettering
    Mounting: Bottom Direct / Rear ( Back ) Direct / Surface Mount / Panel Mount / Capillary Extension
    Diaphragm
    Diaphragm Material:

    SS 316L / MONEL / HASTALLOY –C / TANTALUM / Teflon Coating

    Lower Chamber: SS 304 / SS 316 / MONEL or any other material
    Diaphragm Type: Threaded / Flange Type / Triclover Sealed / Capillary Type / Homogenizer / Pulp & Paper Sealed / Flush Welded
    Filling Fluid: Silicon Oil / Suitable Liquid as desired by the user
